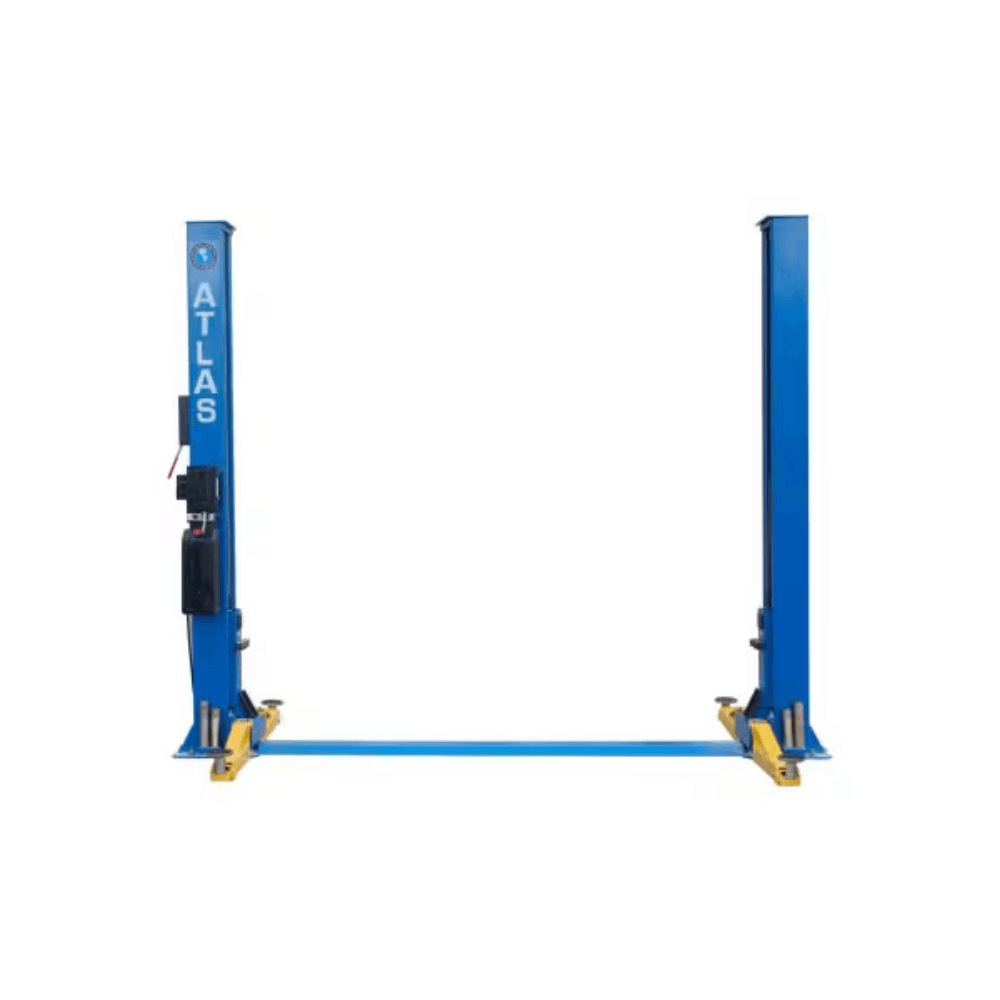

Atlas BP8000 Baseplate Two-Post Lift – 8,000 lb. Capacity
The Atlas BP8000 is a hobbyist-grade baseplate two-post lift, specifically designed for low-ceiling garages. With an overall column height of just 108 inches (9 feet), this lift can be installed in most professional or home garages with ceilings as low as 9′ 3″.
Despite its compact height, the BP8000 includes many premium features found in larger, more expensive lifts, such as a single-point lock release, Super-Symmetric arms, and a 12-piece truck adapter set. This makes it an ideal choice for auto enthusiasts, small workshops, and light commercial use.
Key Features & Benefits
- 8,000 lb. Lifting Capacity – Suitable for cars, SUVs, and light trucks.
- Designed for Low-Ceiling Garages – Total height of 108″ (9 feet) allows installation in spaces with ceilings as low as 9′ 3″.
- Baseplate, Open-Top Style Lift – Provides structural stability without an overhead beam.
- Super-Symmetric Arm Design – 2-Stage Front Arms & 3-Stage Rear Arms for enhanced flexibility. Allows vehicles to be lifted in both symmetric and asymmetric positions.
- Automatic Arm Restraints – Ensures secure positioning during lifting.

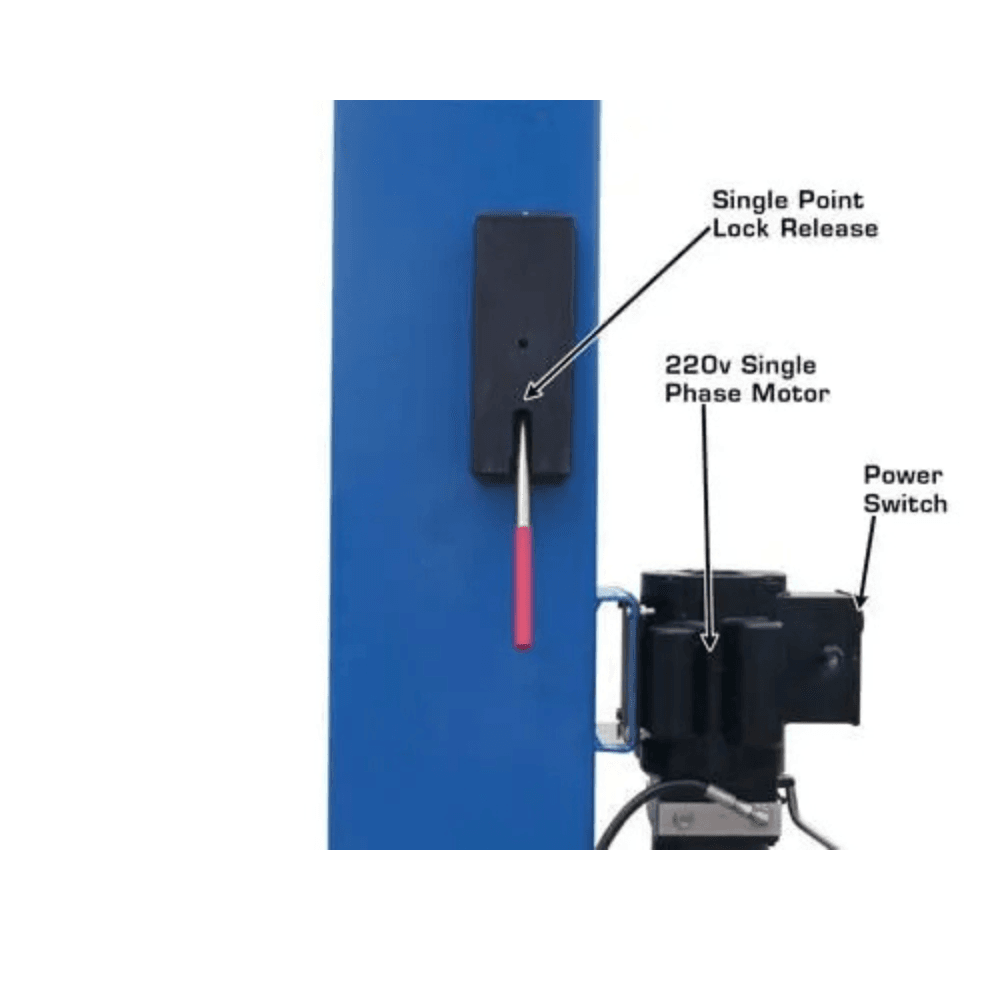

- Single-Point Lock Release – Allows simultaneous unlocking of both columns for added convenience. Enhances safety and ease of operation.
- Double Safety Lock System – Provides an extra layer of security.

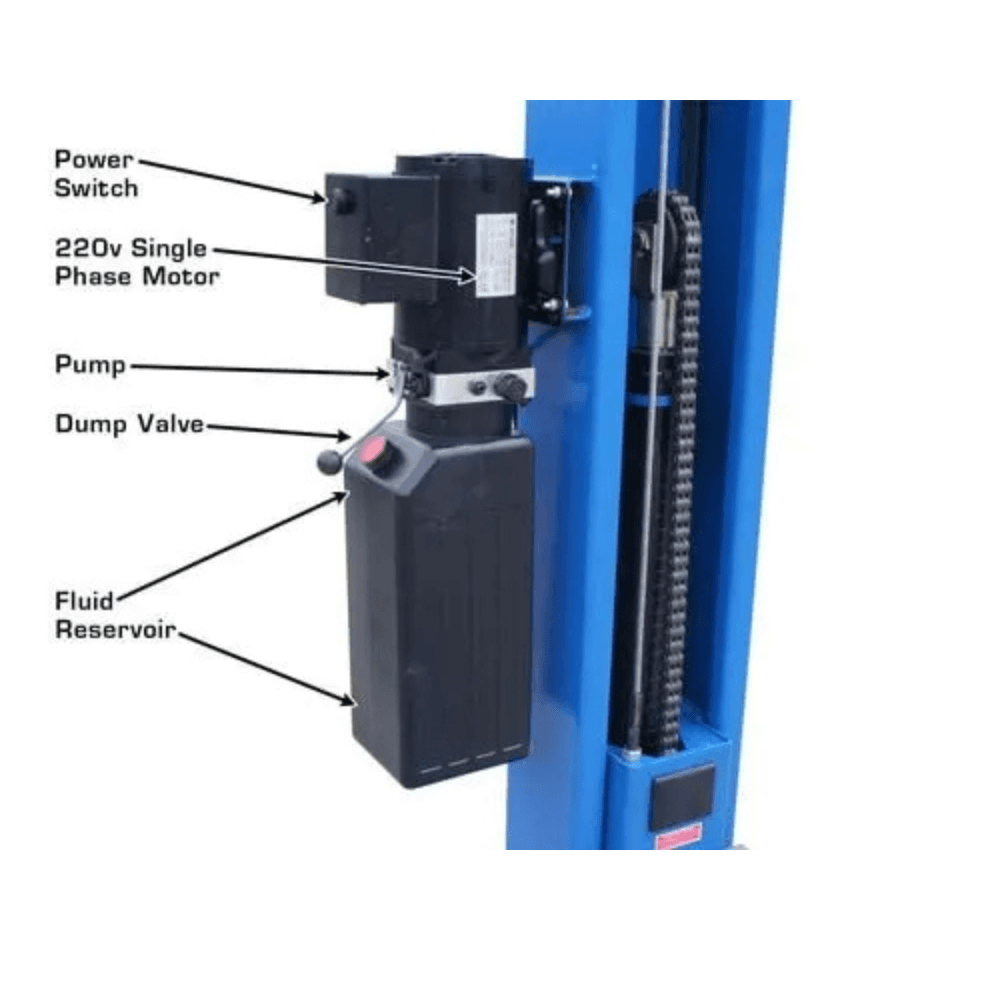

- Dual Hydraulic Chain-Drive Cylinders – Ensures smooth and reliable lifting performance.
- Free 12-Piece Truck Adapter Set – Expands compatibility for a wider range of vehicles.
- Mounting Hardware Included – For easy and secure installation.
Warranty: 5-Year Structural, 2-Year Hydraulic (Parts Only).
Technical Specifications
| Specification | Measurement / Detail |
|---|---|
| Lifting Capacity | 8,000 lbs. |
| Overall Height | 108″ (9′) |

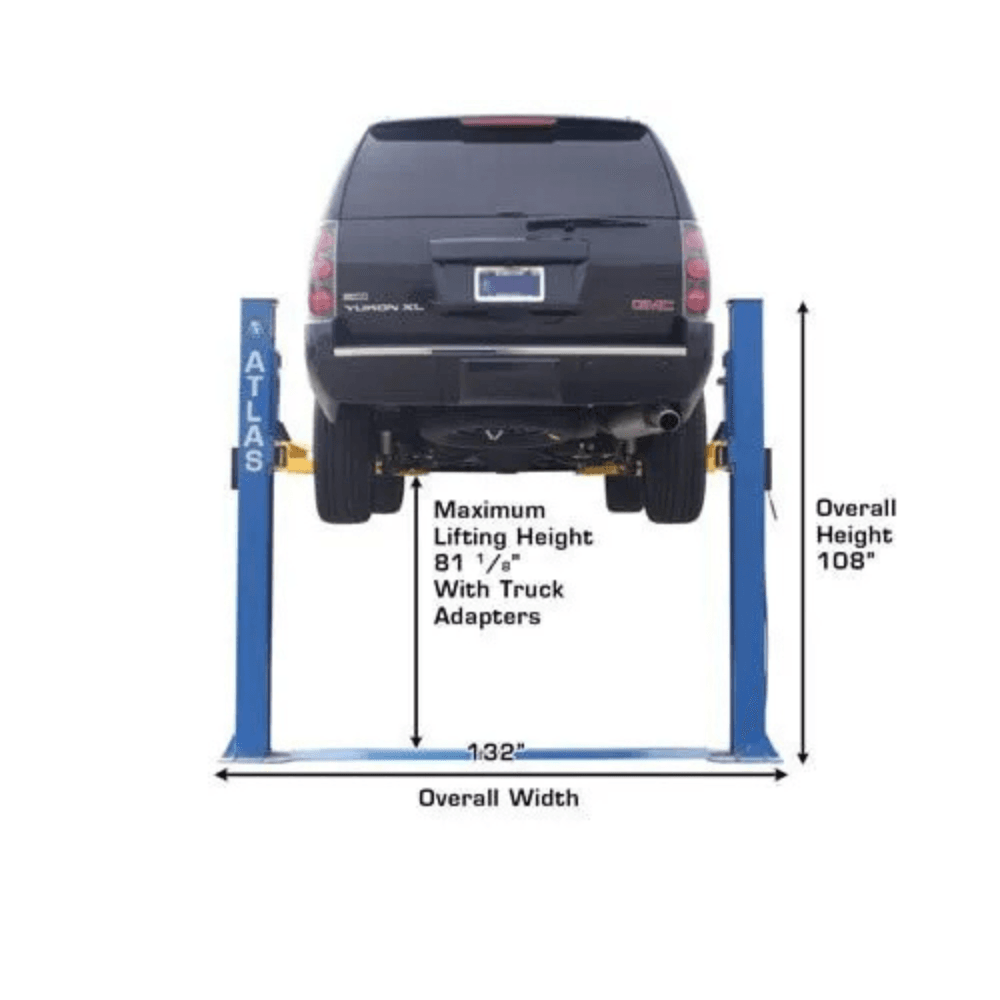

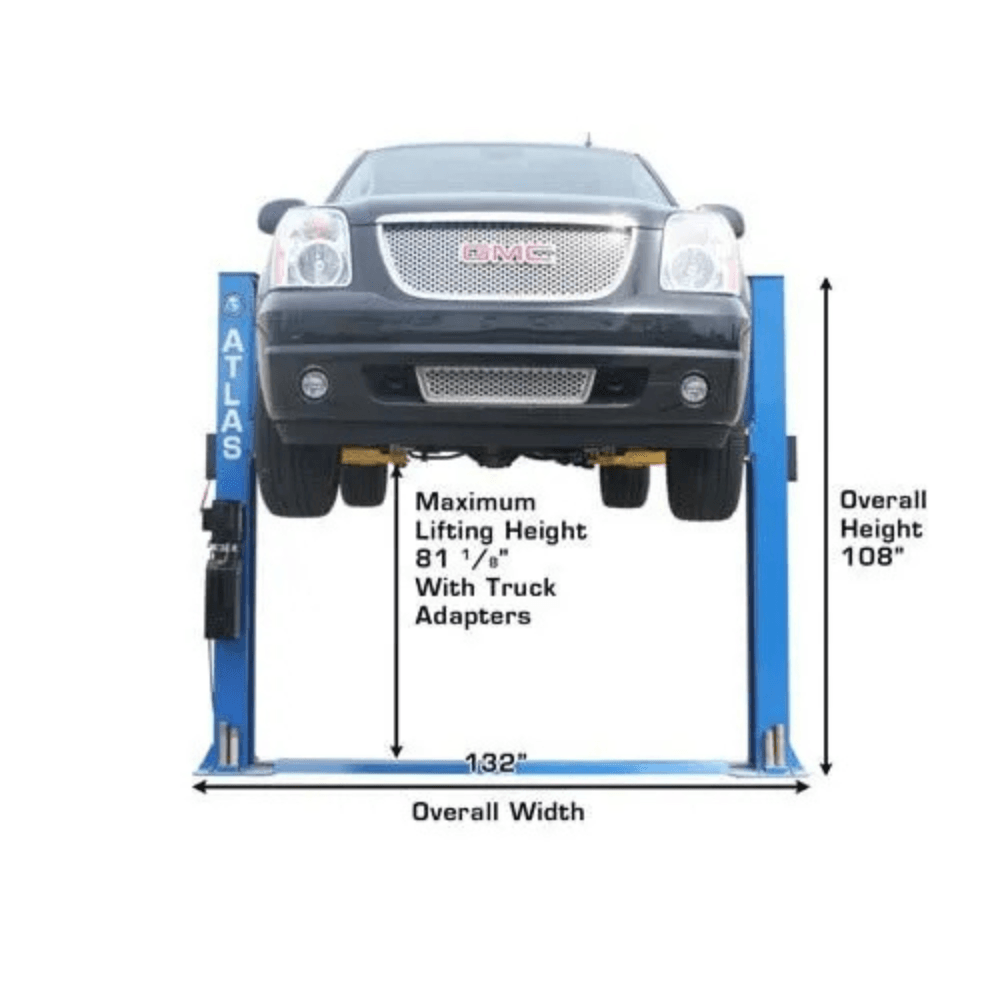

| Overall Floor Width | 132″ (11′) |

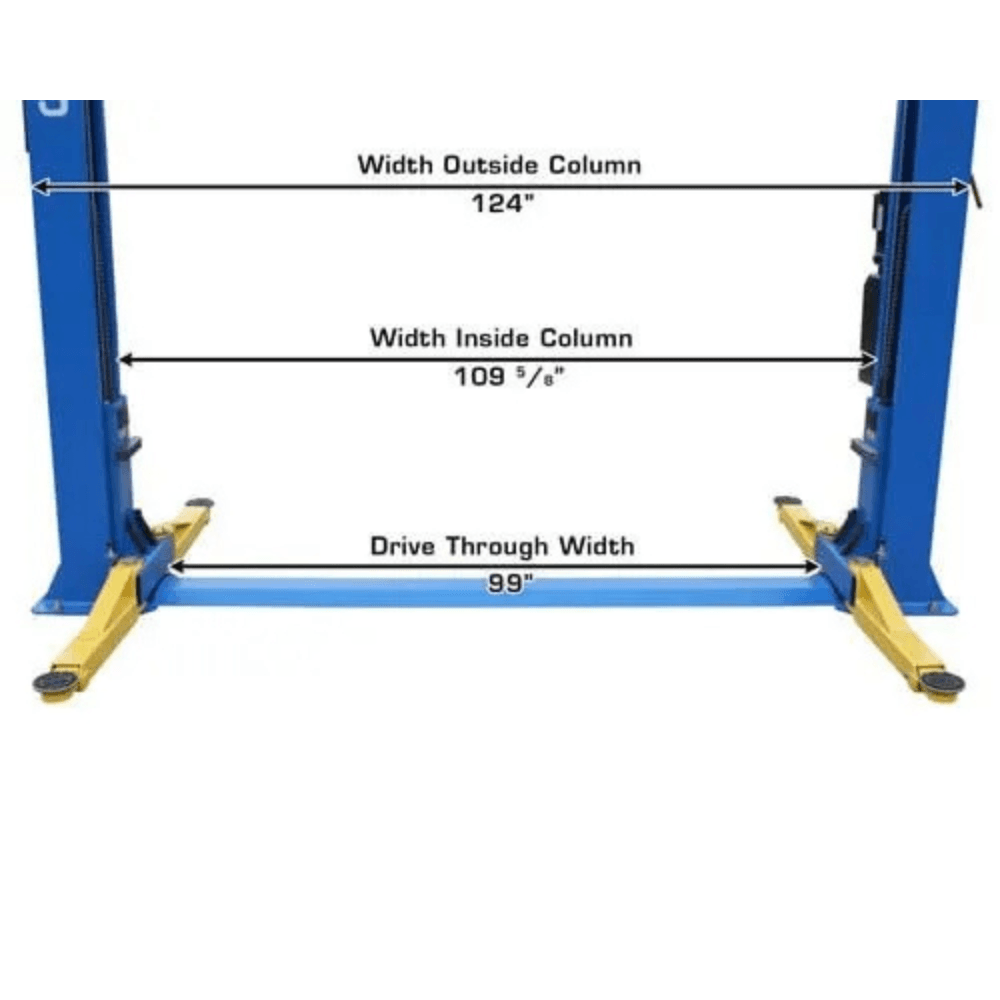

| Outside Column to Outside Column | 124″ (10′ 4″) |

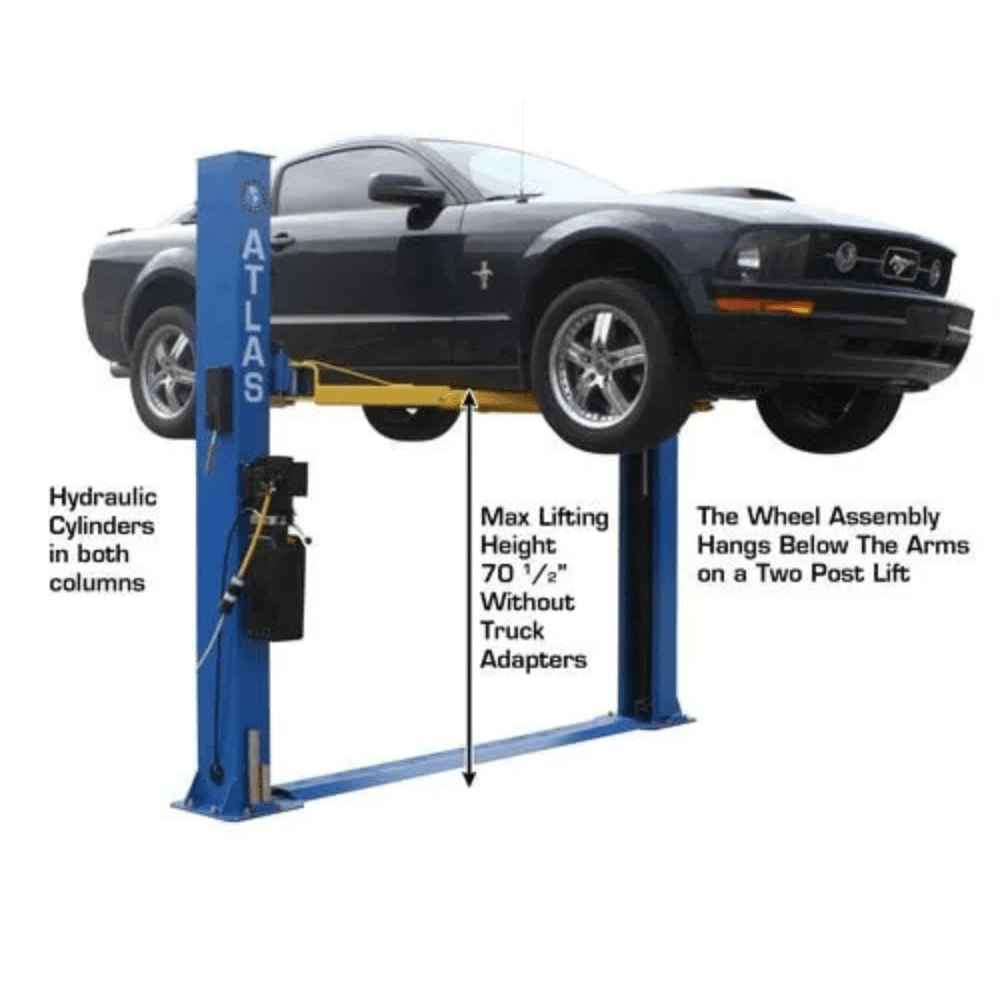

| Maximum Lift Height (Without Adapters) | 75 1/2″ |
| Maximum Lift Height (With Adapters) | 86 1/2″ |
| Minimum Arm Height | 4″ |
| Inside Column Width | 109 1/8″ (9′ 1 1/8″) |
| Drive-Thru Clearance | 99″ (8′ 3″) |
| Column Size | 7 1/4″ x 11″ |
| Column Thickness of Steel | 6mm |
| Base of Lift | 17 1/2″ x 17 3/4″ |
| Motor / Electrical Requirement | 220V Single Phase (30 Amp Breaker Recommended) |
| Oil Requirement | 3-5 Gallons AW32 or AW46 (Not Included) |
| Shipping Weight | 1,300 lbs. |
| Adapter Heights | 4 Each: 2″, 3″, 6″ |
| Arm Hole / Adapter Peg Size | 1.5″ |
Why Choose the Atlas BP8000?
The Atlas BP8000 is one of the best two-post lifts for garages with height restrictions, offering a powerful yet compact lifting solution. Its Super-Symmetric arm design, strong hydraulic chain-drive system, and premium safety features make it an ideal choice for vehicle maintenance and repairs in both home garages and small workshops.
If you’re looking for a reliable, low-ceiling-friendly, and feature-packed two-post lift, the Atlas BP8000 is the perfect choice!
