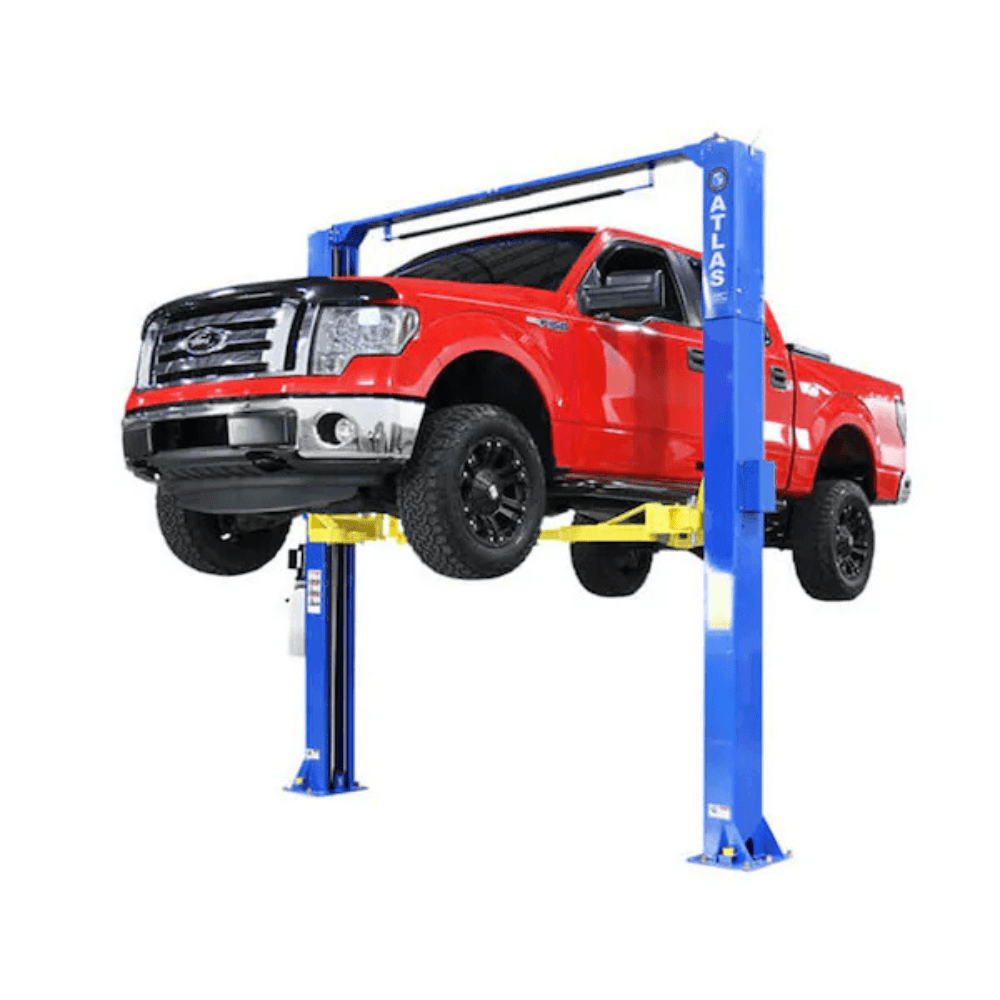

Atlas 9KOHX Overhead Clear-Floor 2-Post Lift
The Atlas 9KOHX is a light-duty, economy-designed overhead two-post lift, offering reliable performance at an affordable price. Featuring a clear-floor design, it allows unrestricted movement beneath the vehicle, making it a great option for homeowners and small commercial shops.
With a 9,000 lb. lifting capacity, this lift is perfect for servicing cars, SUVs, and light-duty trucks. It offers two adjustable height settings (11’ 6” or 11’ 10”), ensuring compatibility with standard garages.
The symmetric/asymmetric arm design provides maximum versatility, allowing operators to position the lift arms to accommodate different vehicle sizes. Additionally, the spring-loaded Secondary Lock System (SLS) automatically engages in case of a slack or broken chain, adding an extra layer of safety.
Key Features & Benefits
- 9,000 lb. Capacity – Ideal for lifting cars, SUVs, and light-duty trucks.
- Padded Shut-Off Bar – Prevents damage by stopping the lift if a vehicle contacts the top.
- Light Commercial Grade – Suitable for home garages and small shops.
- Clear-Floor Design – Provides unobstructed workspace under the vehicle.
- Asymmetric/Symmetric Arm Design – Adapts to various vehicle sizes for increased flexibility.
- Dual Hydraulic Chain-Drive Cylinders – Ensures smooth and reliable lifting.
- Powder Coat Finish – Enhances durability and corrosion resistance.
- Secondary Lock System (SLS) – Engages automatically in case of chain failure.

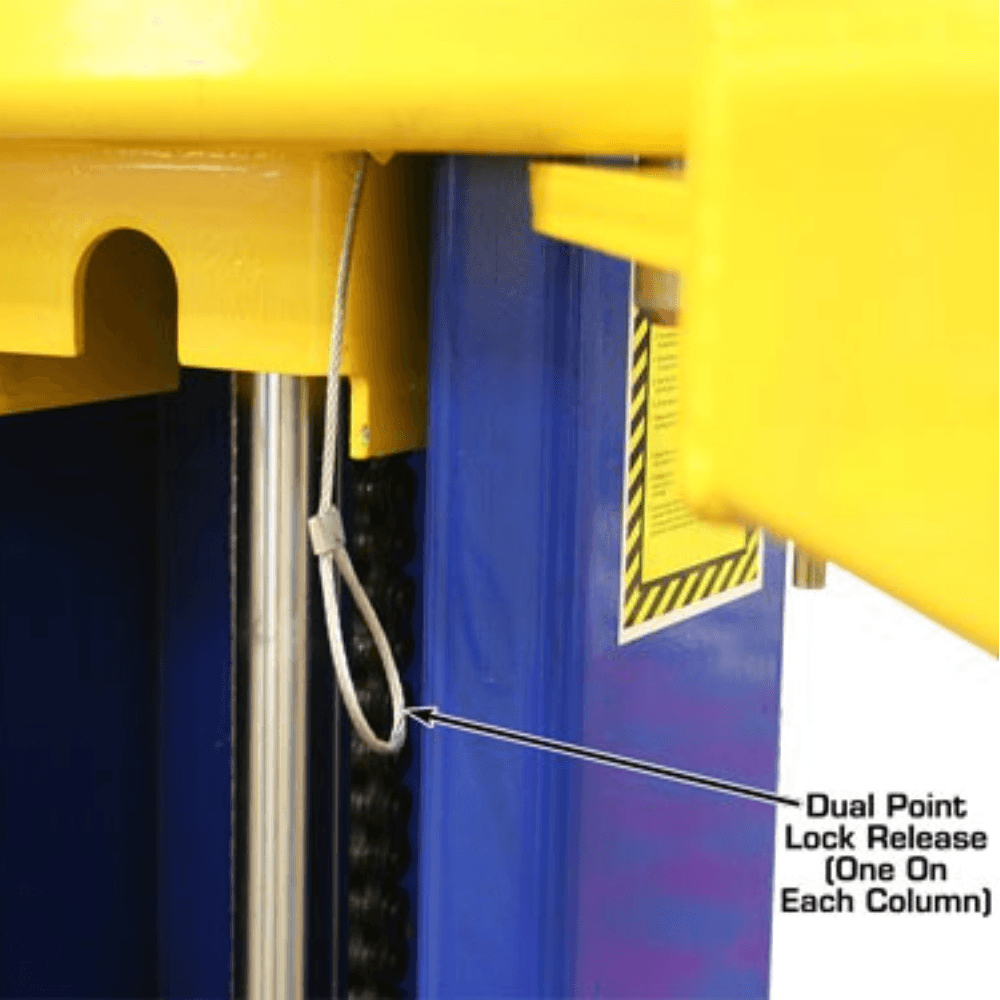

- Dual Point Lock Release – Ensures easy lowering and improved safety.
- Automatic Arm Restraints – Keeps arms securely locked in place during lifting.

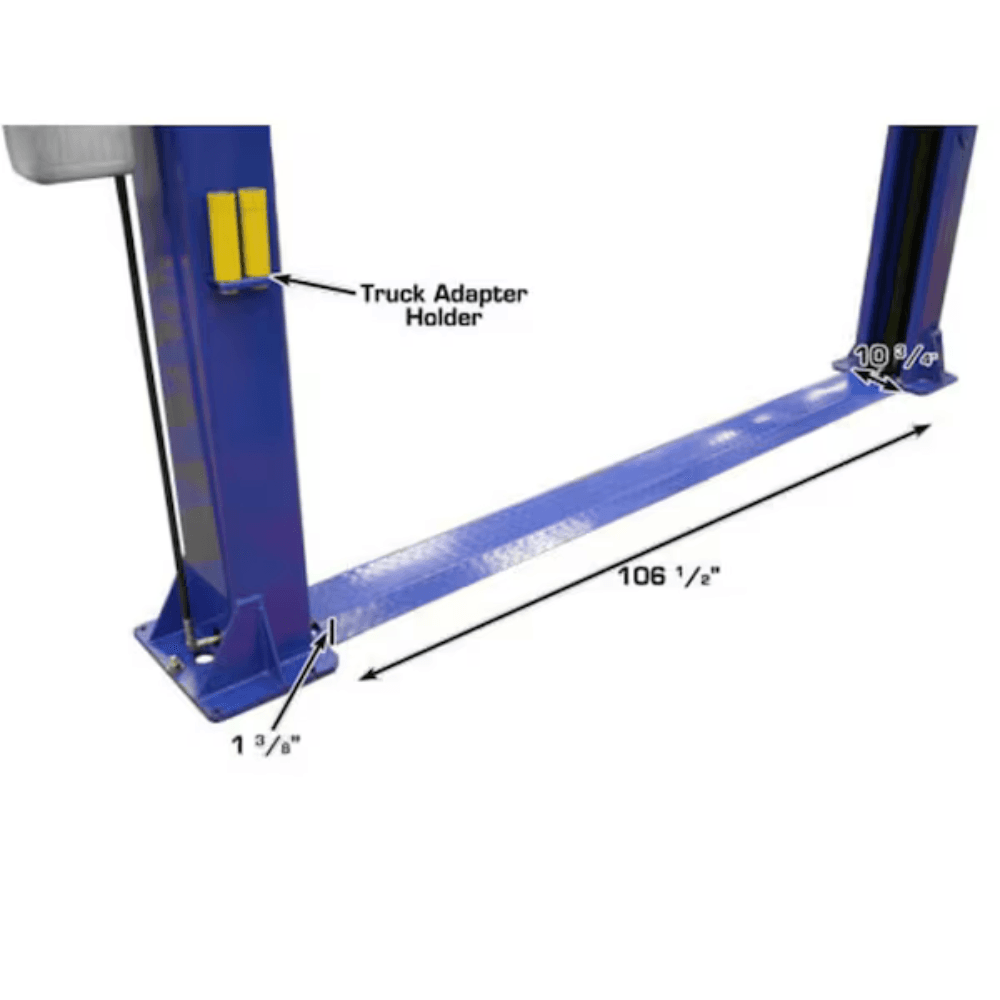

- Free 8-Piece Truck Adapter Set – Expands compatibility with larger vehicles.
- Mounting Hardware Included – Ensures a hassle-free installation.
- Shipping Weight: 1,450 lbs. – Lightweight yet durable for reliable performance.
Technical Specifications
| Specification | Measurement / Detail |
|---|---|
| Lifting Capacity | 9,000 lbs. |

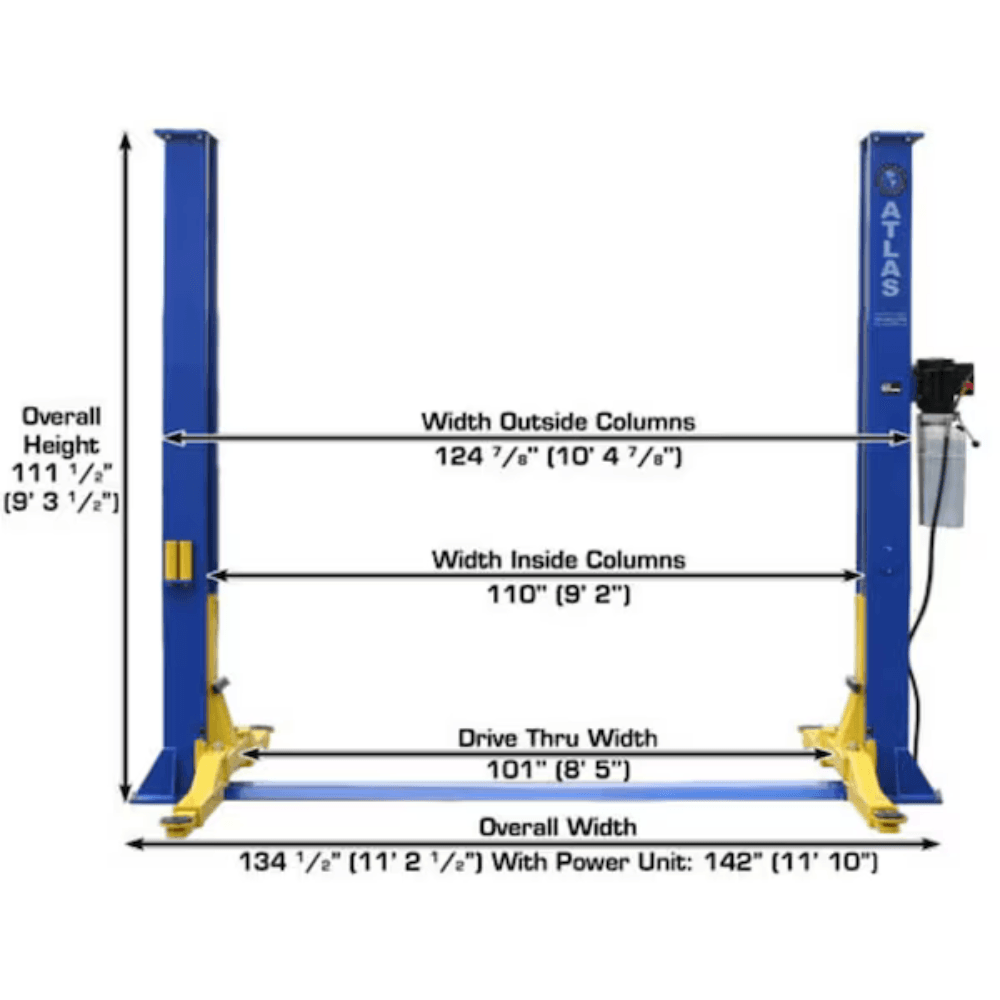

| Overall Height | 138″ (11′ 6″) or 142″ (11′ 10″) |
| Overall Floor Width | 134 1/2″ (11′ 2 1/2″) |
| Outside Column to Outside Column Width | 124 7/8″ (10′ 4 7/8″) |
| Maximum Lift Height (Without Adapters) | 74 1/2″ |
| Maximum Lift Height (With Adapters) | 81″ |
| Minimum Arm Height | 4″ |
| Inside Column Width | 110″ (9′ 2″) |
| Drive-Thru Clearance | 100″ (8′ 4″) Symmetric / 90 1/2″ (7′ 6 1/2″) Asymmetric |
| Column Size | 7 1/4″ x 11″ |
| Column Steel Thickness | 5mm |
| Baseplate Dimensions | 14 1/4″ x 18″ |

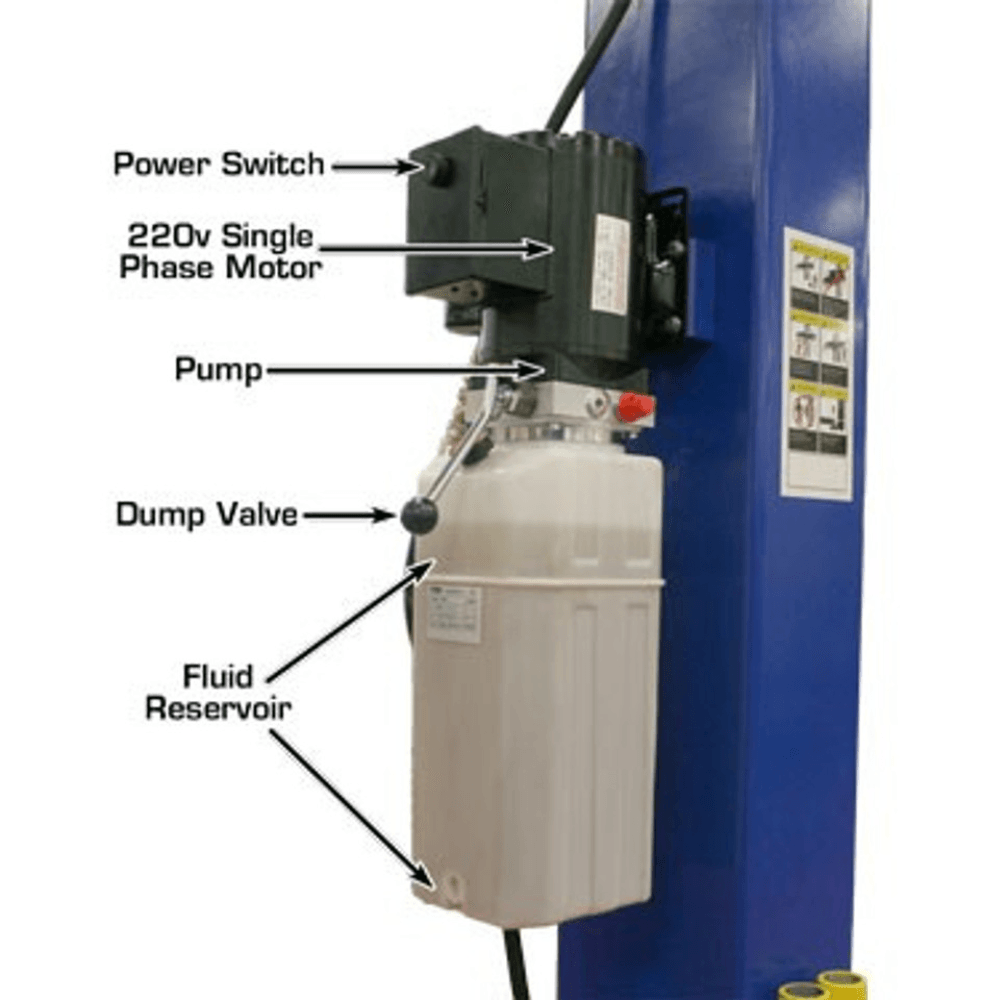

| Motor/Electrical Requirement | 220V, Single Phase (30 Amp Breaker Recommended) |
| Oil Requirement | 3-5 Gallons AW32/AW46 (Not Included) |
| Shipping Weight | 1,450 lbs. |

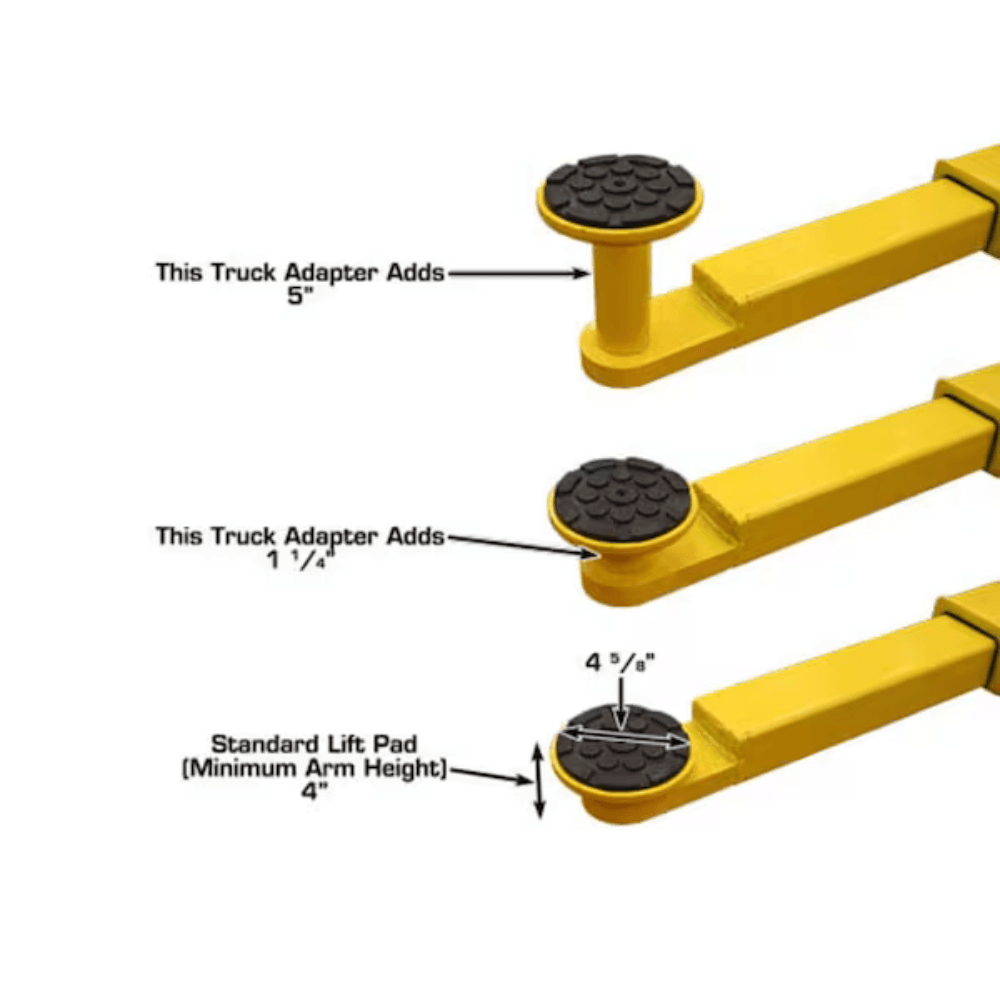

| Adapter Heights | 4 at 1.5″, 4 at 5″ |
| Arm Hole/Adapter Peg Size | 1.5″ |
Final Thoughts
The Atlas 9KOHX is a reliable and affordable two-post lift, offering exceptional performance for light commercial and home garage use. With versatile lifting configurations, a clear-floor design, and a dual safety system, it is the perfect solution for car enthusiasts and small auto shops looking for professional-grade lifting at an economical price.
