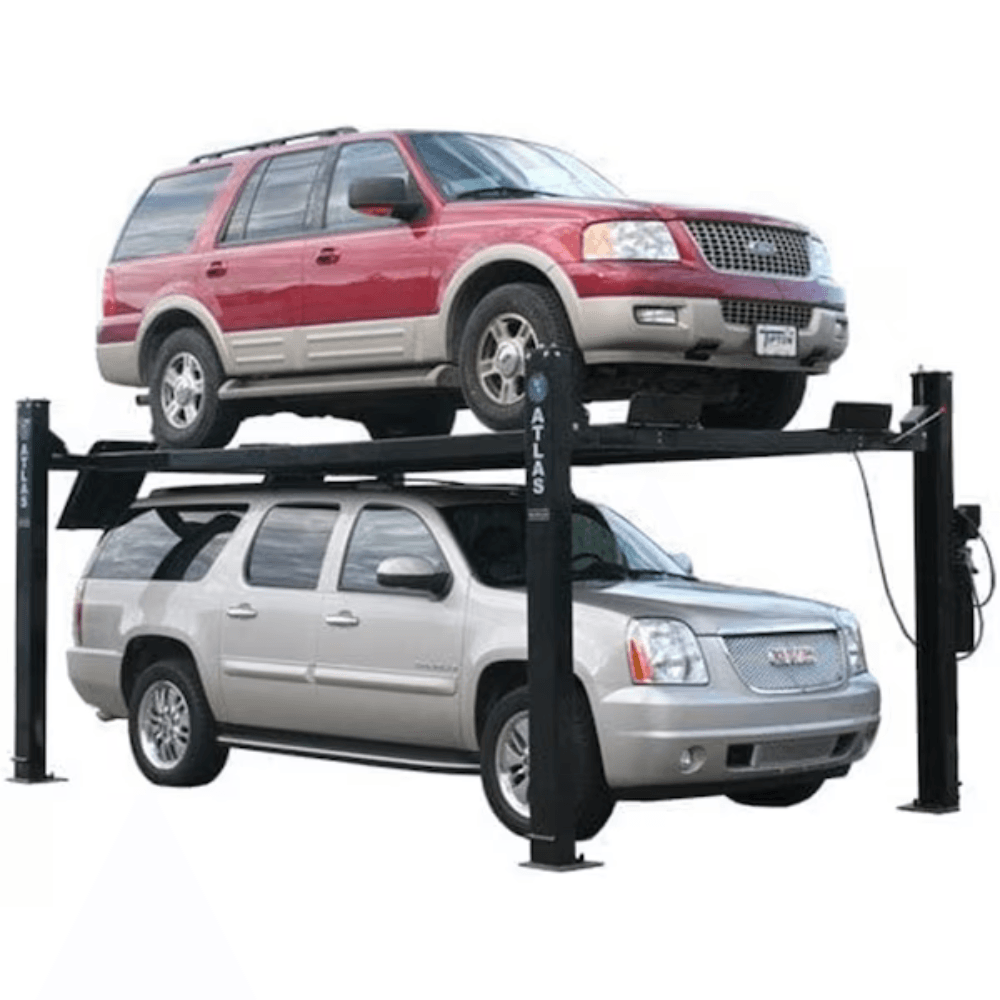

Atlas Garage PRO9000 Extra Tall/Wide/Long 4-Post Lift
The Atlas Garage PRO9000 is a heavy-duty, high-capacity 4-post lift, designed for hobbyists and professional auto service centers. With a 9,000 lb. lifting capacity, extra-long runways, and expanded height clearance, this lift can accommodate a wide range of vehicles, from compact cars to diesel dually trucks.
Unlike other hobbyist lifts, the Garage PRO9000 is freestanding and portable, featuring a caster kit with polyurethane wheels that allows it to be moved between bays or even outdoors. Its extra-wide design ensures that even large vehicles can be driven onto the runways with ease.
This commercial-grade lift includes steel approach ramps, a steel jack tray, plastic drip trays, and a double lock safety system, making it one of the most feature-packed portable 4-post lifts on the market.
Key Features & Benefits
- 9,000 lb. Lifting Capacity – Supports cars, SUVs, and light to heavy-duty trucks.
- Extra Tall, Extra Wide, Extra Long – Designed for long-wheelbase and wide vehicles.
- Freestanding & Portable Design – Easily moved between bays or outside with the included caster kit.
- Single-Point Lock Release – Simplifies operation and enhances safety.
- Lock Ladder Design & Double Lock Safety System – Ensures secure lifting at multiple height positions.
- Steel Approach Ramps – Provides easy vehicle access to the lift.
- Steel Jack Tray Included – Allows the use of bottle jacks or rolling jacks for wheel and brake work.
- 4 Plastic Drip Trays Included – Helps keep the workspace clean.
- 2 Rubber Wheel Chocks Included – Prevents vehicle movement while parked.
- Tracks for Rolling Bridge Jack Compatibility – Supports the use of Atlas RJ6BK and similar rolling bridge jacks.
- 1-Year Manufacturer Warranty for Parts, 2-Year Warranty on Lifting Structure.
Technical Specifications
| Specification | Measurement / Detail |
|---|---|
| Lifting Capacity | 9,000 lbs. |
| Lifting Height to Top of Runway | 85″ (7′ 1″) |
| Clearance Under Runways | 80 1/4″ (6′ 8 1/4″) |

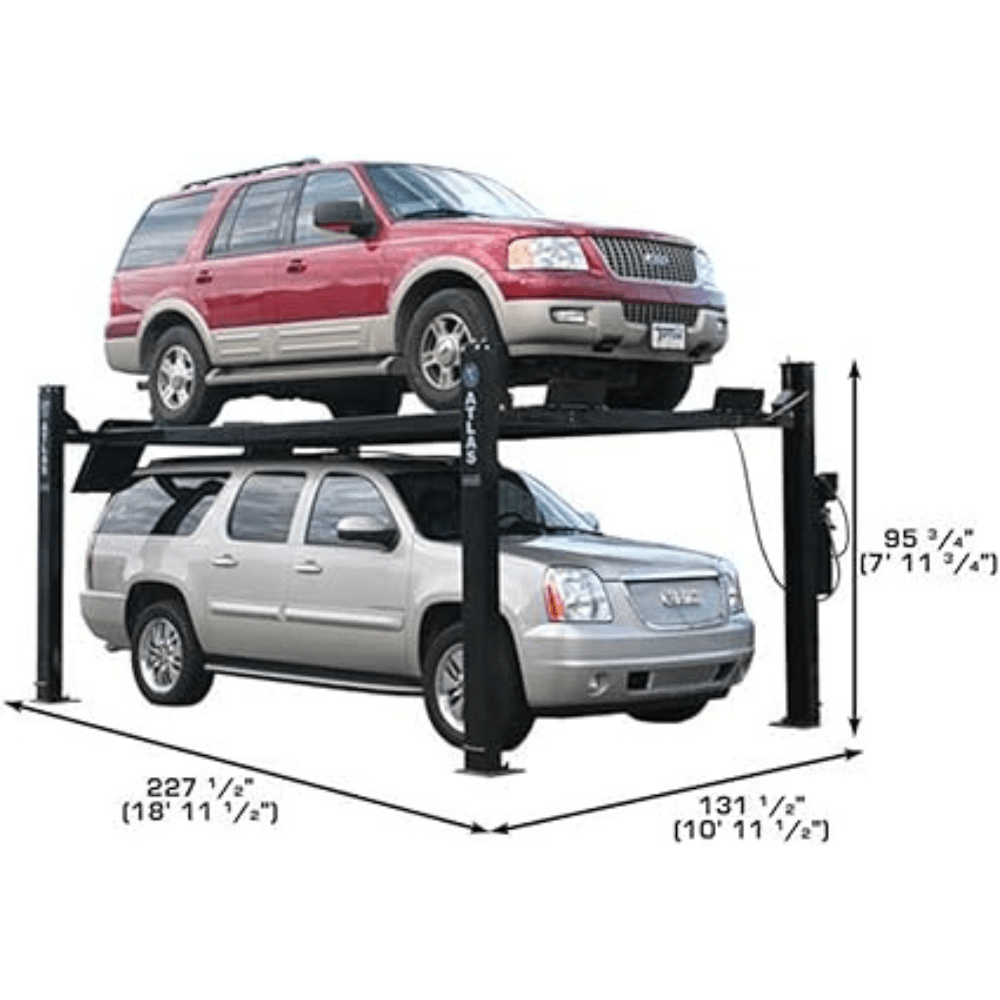

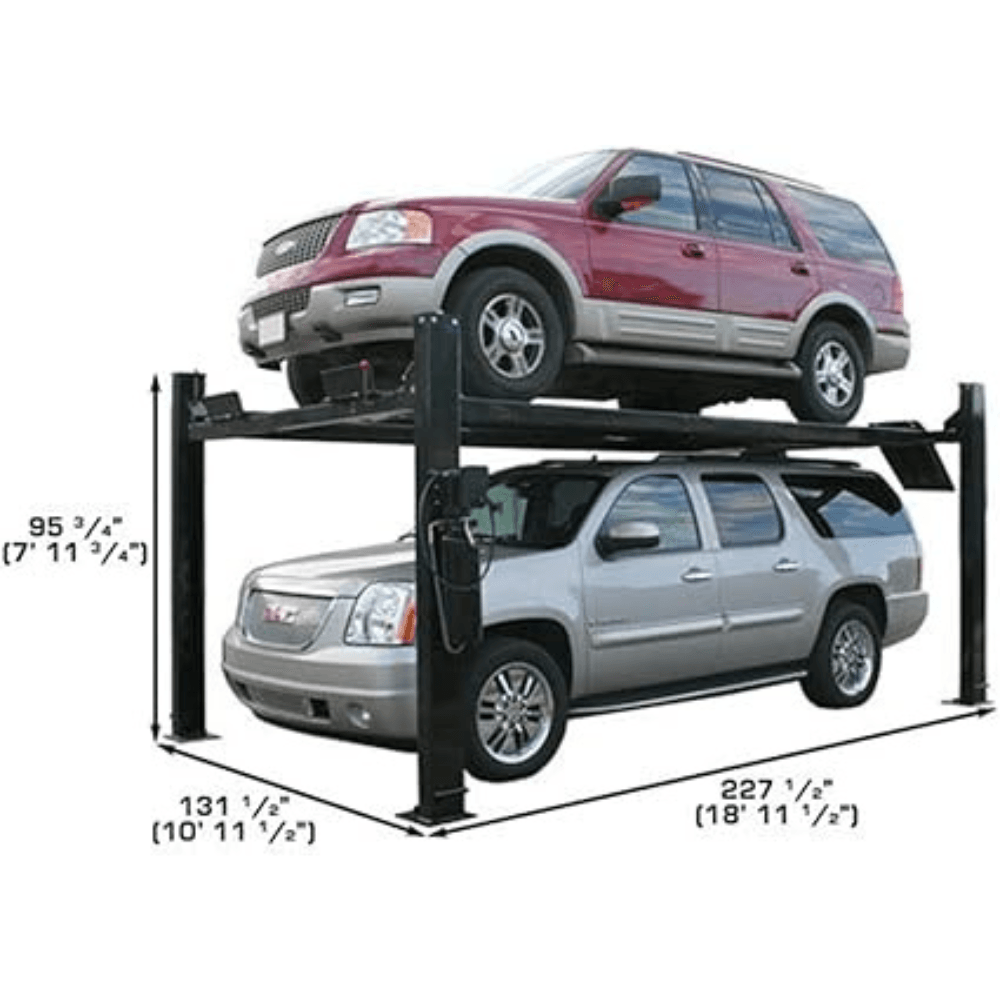

| Height of Columns | 95 3/4″ (7′ 11 3/4″) |
| Overall Width (Without Motor) | 123 1/2″ (10′ 3 1/2″) |

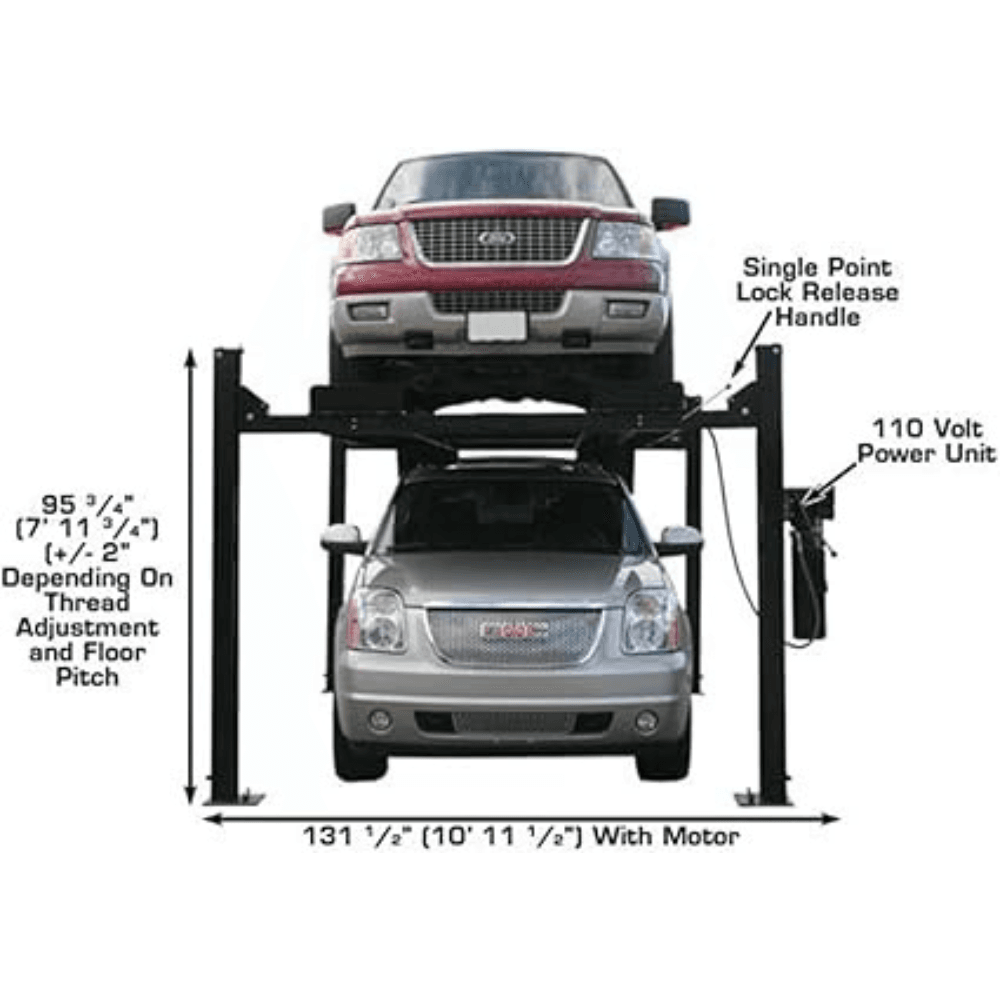

| Overall Width (With Motor) | 131 1/2″ (10′ 11 1/2″) |

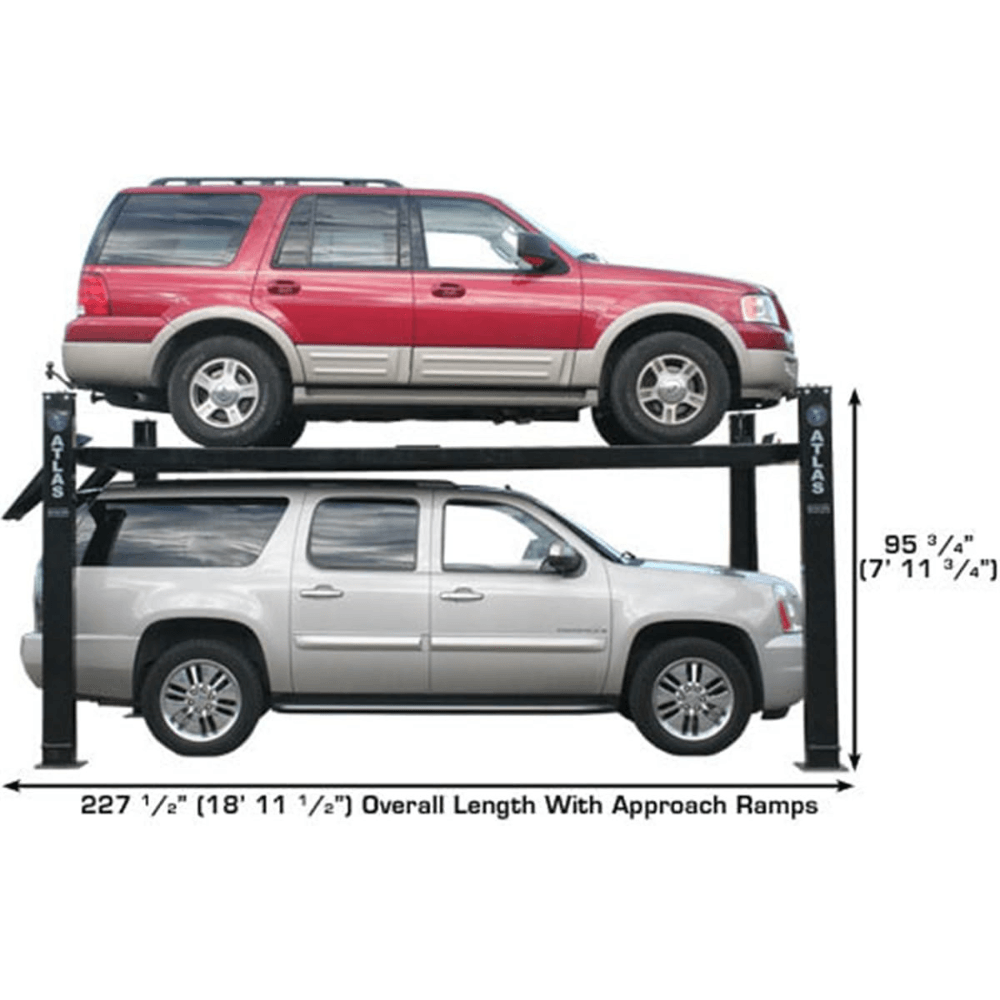

| Overall Length (With Approach Ramp) | 227 1/2″ (18′ 11 1/2″) |
| Approach Ramp Length | 31″ (2′ 7″) |
| Runway Width | 21 1/4″ (w/ Rails) or 20″ (Driving Surface) |
| Runway Length | 199 1/2″ (16′ 7 1/2″) |
| Runway Thickness | 4 3/4″ |
| Width Between Runways | 39 3/4″ (3′ 3 3/4″) |
| Width Between Runway Rails | 35 1/2″ (2′ 11 1/2″) |
| Outside Runway to Outside Runway | 79″ (6′ 7″) |
| Clearance Between Columns | 110 1/2″ (9′ 2 1/2″) |
| Length Between Columns | 184 1/2″ (15′ 4 1/2″) |
| Maximum Wheel Base | 187″ (15′ 7″) |
| Drive-Thru Width (Outside of Tire to Outside of Tire) | 97 1/4″ (8′ 1 1/4″) |
| Motor/Electrical Requirement | 110V (30 Amp Breaker Required) |
| Shipping Weight | 2,300 lbs. |
Why Choose the Atlas Garage PRO9000?
The Atlas Garage PRO9000 is one of the most versatile, feature-packed, and heavy-duty 4-post lifts available for automotive enthusiasts and professionals alike.
With its extended height, extra-long runways, and wide drive-thru clearance, this lift can handle everything from Smart Cars® to Diesel Dually trucks. Its freestanding, portable design ensures maximum flexibility, while the double lock safety system and lock ladder design provide secure lifting and peace of mind.
If you’re looking for a powerful, reliable, and portable 4-post lift, the Atlas Garage PRO9000 is the ultimate choice!
